Tyre-protection chains Type LOM 18.x

Protective chains with “lightened” design for lorries (size 14 ÷ 18)

Protective chains for where adhesion is the most important aspect, while keeping the weight at minimum level. Recommended for transporting machinery in steep slopes, especially in winter and mud conditions.

Available for following sizes:

  • LOM 14.10 Z-type and LOM 14.10 E-type
  • LOM 16.10 Z-type and LOM 16.10 E-type
  • LOM 18.10 Z-type and LOM 18.10 E-type

/onecol/cms/365/LOM_1_type17.jpg

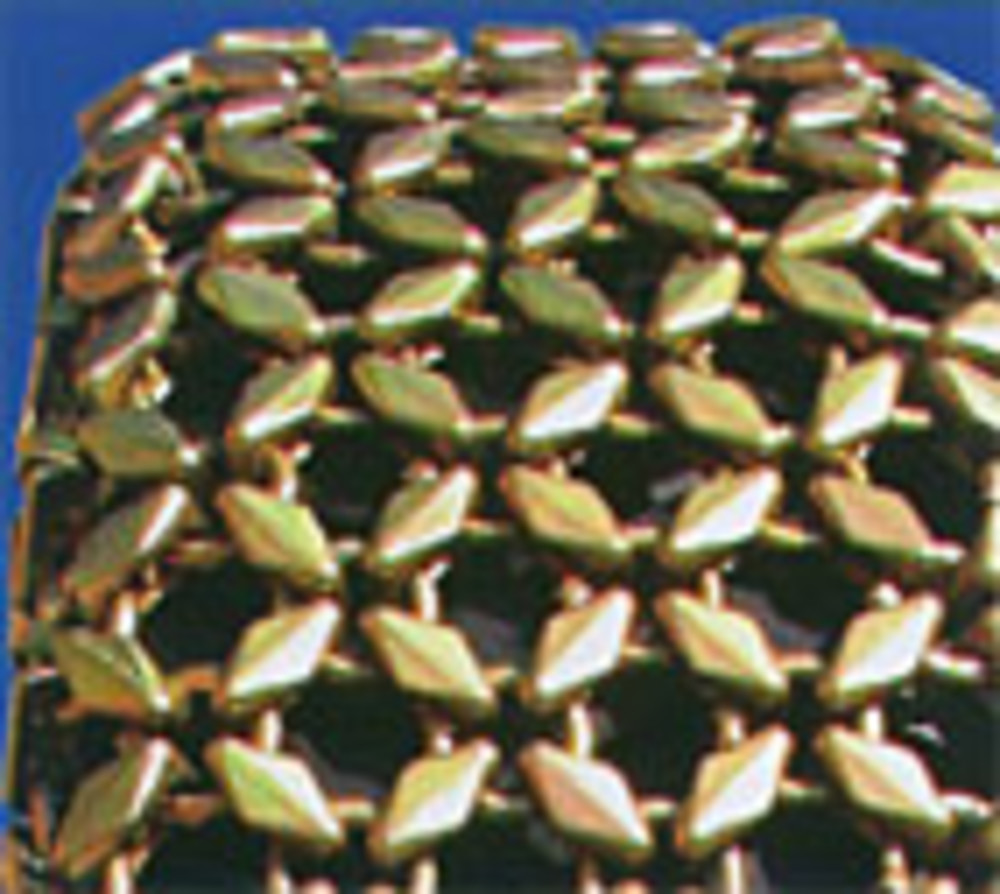

LOM 18.4.H; U; E - type

Technical data:

  • engine power: up 200 kW
  • tyre size: 26,5-25 up to 45/65-45
  • link size 96 x 63 x 28 ÷ 48 mm
  • distance between links H: 72 mm
  • distance between links U: 86 mm
  • distance between links E and Z: 92 mm
  • minimal distance between the tyre and the machine: side: 70 mm, radial: 100 mm

/onecol/cms/364/LOM_1_type18.jpg

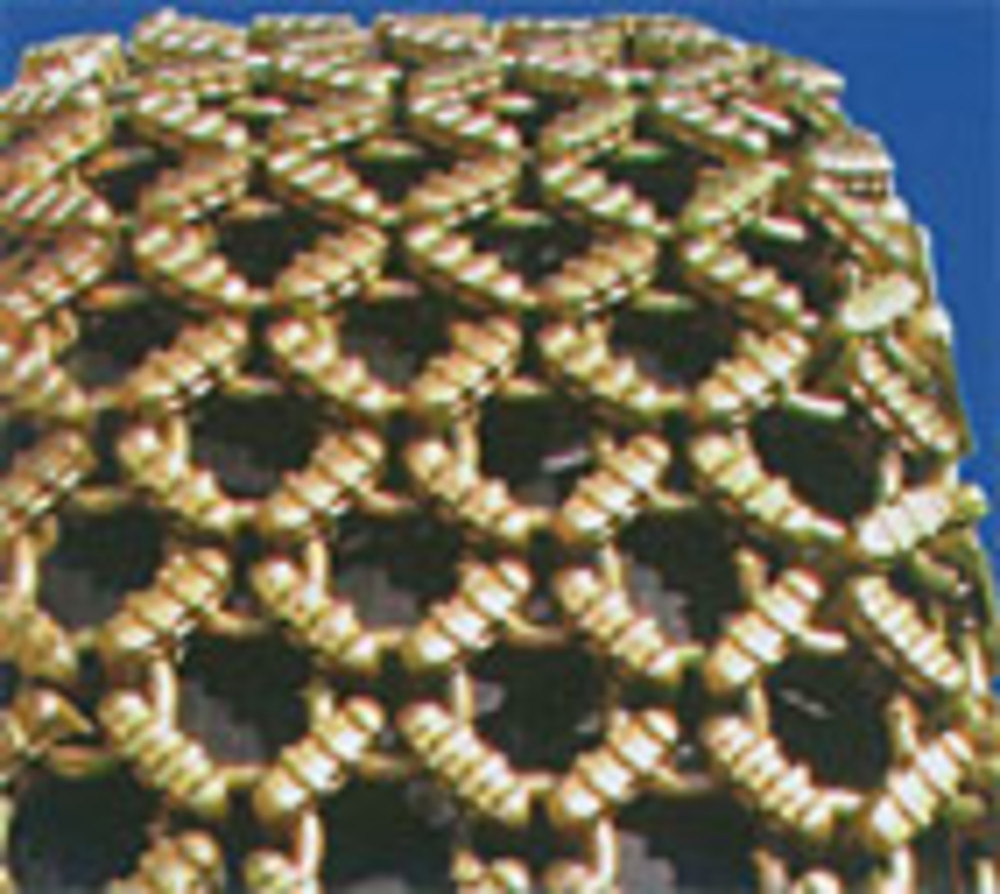

LOM 18.4.U - type

/onecol/cms/363/LOM_1_type19.jpg

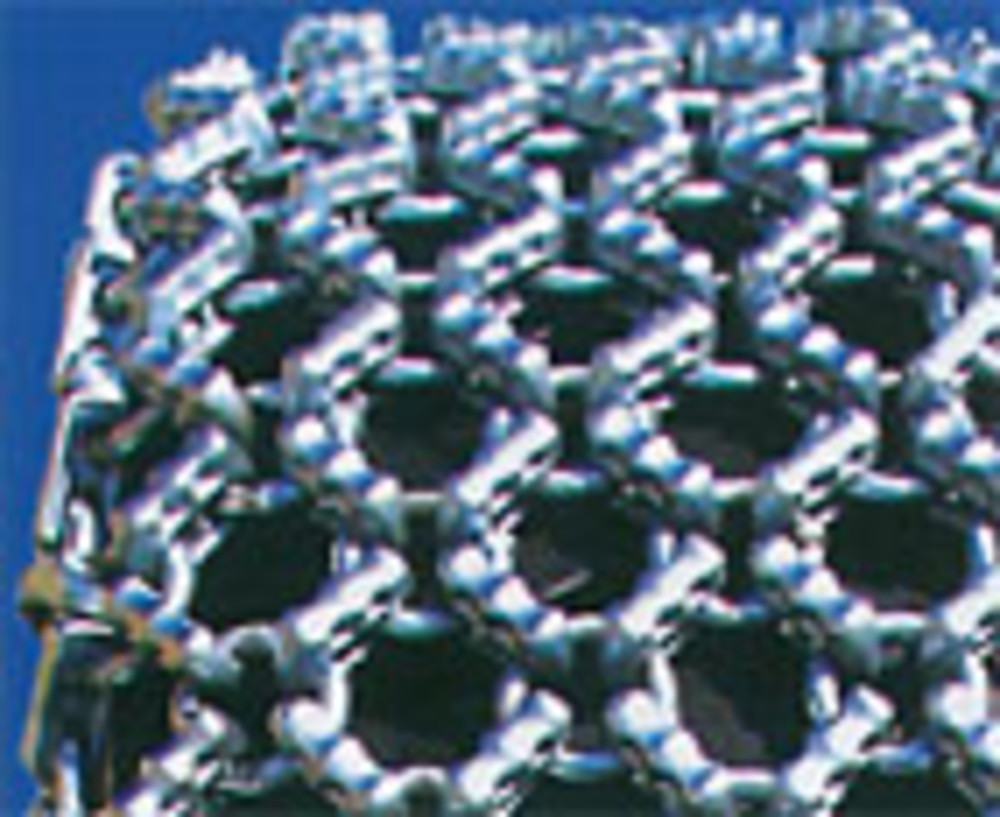

LOM 18.4.E - type

/onecol/cms/361/LOM_1_type21.jpg

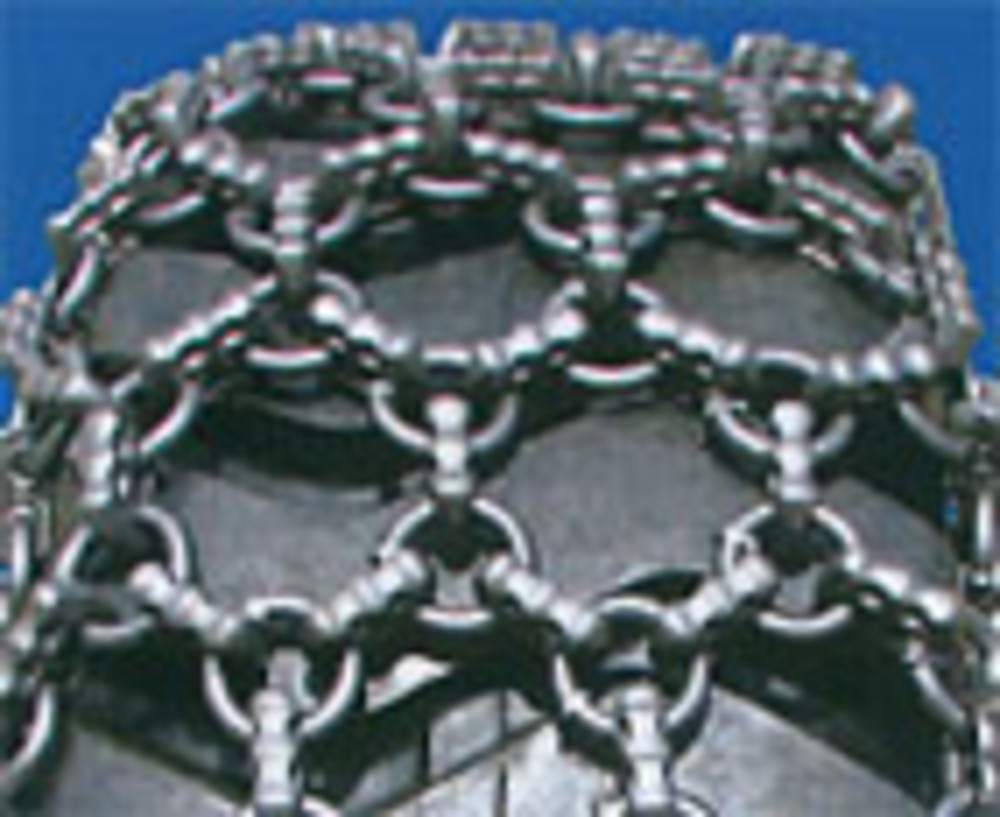

LOM 18.6.Z - type

/onecol/cms/360/LOM_1_type22.jpg

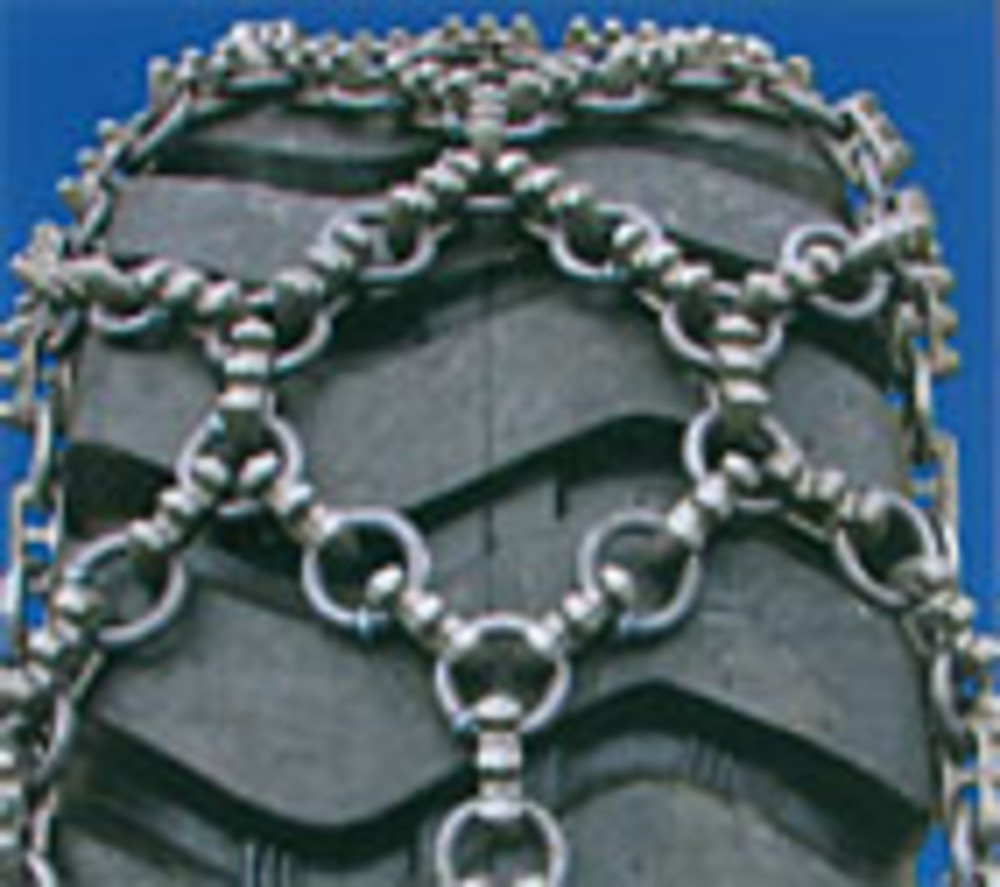

LOM 18.6.E - type

Technical data:

  • distance between links/rings: 174/144 mm
