Fishing chains long link, measurements acc. to DIN 22252 or similar, hardened and tempered, material 21 Mn Si 5 or similar, strength HV 440, breaking elongation 8%, free of twists, tested, calibrated, self coloured

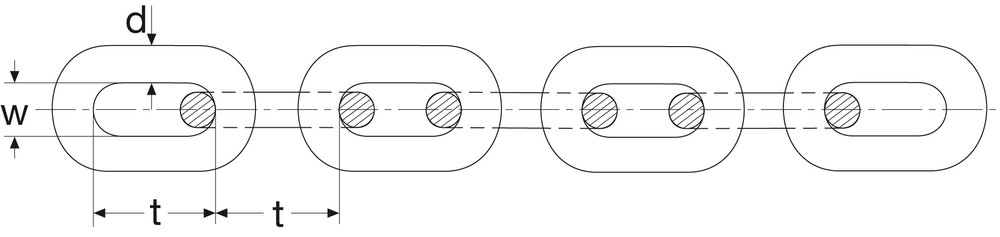

| Diameter d mm | Pitch t mm | width inner w mm | Weight kg/m | Breaking load Nk |
|
11
|
64,0
|
18
|
2,1
|
140
|
|
13
|
80,0
|
22
|
2,9
|
240
|
|
16
|
66,0
|
22
|
4,8
|
322
|
|
18
|
90,0
|
22
|
5,8
|
410
|
|
19
|
76,0
|
24
|
6,9
|
454
|
|
22
|
86,0
|
24
|
9,2
|
610
|
|
24
|
87,5
|
26
|
11,5
|
720
|
|
26
|
92,0
|
28
|
13,7
|
850
|
|
30
|
108,0
|
36
|
18,0
|
1.130
|
