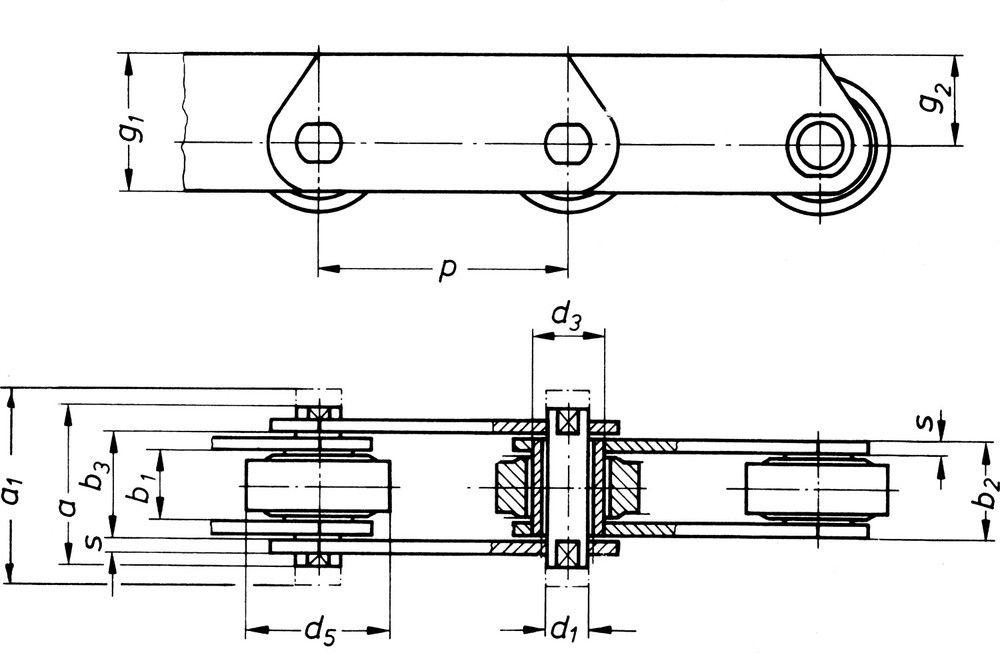

ISO type MCT, with increased plates, DIN 8168-3

/onecol/cms/158/foerderketten.mit-vollbolzen-erhoete-lasche-01.jpg

Chain-N°
p
b1 min.
b2 max. b3 min. d1 max. d3 max. d5 max. g1 g2 s breaking load kN permissible tractive force kN bearing area cm²
MCT 28
63 - 160
20
28
28,3
13,0
17,5
36
35
22,5
3,5
28
4
3,64
MCT 56
80 - 250
24
33
33,3
15,5
21,0
50
50
32,5
4,0
56
8
5,11
MCT 112
100 - 315
32
45
45,5
22,0
29,0
70
70
45,0
6,0
112
16
9,90
MCT 224
160 - 500
43
60
60,6
31,0
41,0
100
100
65,0
8,0
224
32
18,60
