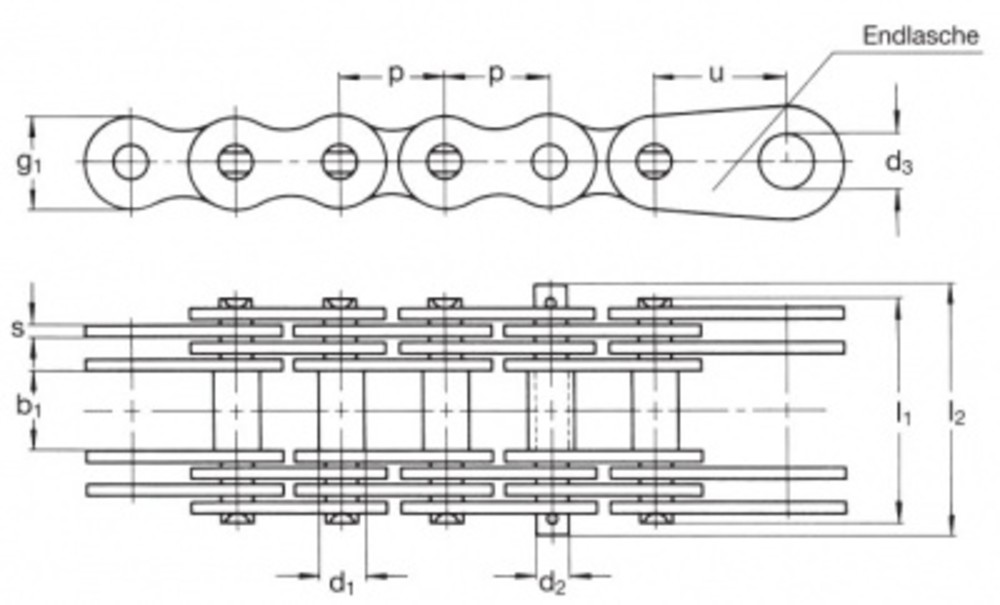

| p | l1 max. | l2 max. | b1 min. | d1 h11 | d2 h11 | d3 a11 | g1 max. | s | u | quantity plates per link | proof load kN | breaking load kN | bearing area cm² | ~ weight kg/m |
|
15
|
25
|
27
|
12
|
5
|
4
|
9
|
12
|
2,0
|
20
|
2
|
0,050
|
5
|
0,16
|
0,7
|
|
20
|
28
|
33
|
15
|
8
|
6
|
10
|
15
|
2,0
|
25
|
2
|
0,125
|
12
|
0,24
|
1,1
|
|
25
|
36
|
42
|
18
|
10
|
8
|
12
|
18
|
3,0
|
30
|
2
|
0,250
|
25
|
0,48
|
1,8
|
|
30
|
51
|
58
|
20
|
11
|
9
|
14
|
20
|
3,0
|
40
|
4
|
0,400
|
40
|
1,08
|
3,4
|
|
35
|
53
|
61
|
22
|
12
|
10
|
16
|
26
|
3,0
|
45
|
4
|
0,600
|
60
|
1,20
|
4,5
|
|
40
|
58
|
66
|
25
|
14
|
12
|
18
|
32
|
3,0
|
50
|
4
|
0,800
|
80
|
1,44
|
5,0
|
|
45
|
63
|
70
|
30
|
17
|
14
|
22
|
35
|
3,0
|
55
|
4
|
1,000
|
100
|
1,68
|
7,0
|
|
50
|
90
|
97
|
35
|
22
|
18
|
26
|
40
|
4,5
|
60
|
4
|
1,500
|
150
|
3,24
|
11,3
|
|
55
|
108
|
115
|
40
|
24
|
21
|
32
|
42
|
6,0
|
65
|
4
|
2,000
|
200
|
5,04
|
14,5
|
|
60
|
114
|
120
|
45
|
26
|
23
|
36
|
46
|
6,0
|
70
|
4
|
2,500
|
250
|
5,52
|
17,1
|
|
70
|
148
|
157
|
50
|
32
|
28
|
40
|
55
|
6,0
|
85
|
6
|
3,750
|
375
|
10,08
|
34,0
|
|
80
|
159
|
171
|
60
|
36
|
32
|
50
|
60
|
6,0
|
100
|
6
|
5,000
|
500
|
11,52
|
39,0
|
|
90
|
184
|
200
|
70
|
40
|
36
|
60
|
70
|
7,0
|
120
|
6
|
7,500
|
750
|
15,12
|
53,0
|
|
100
|
224
|
234
|
80
|
45
|
40
|
70
|
80
|
7,0
|
140
|
8
|
10,000
|
1.000
|
22,95
|
77,0
|
|
110
|
236
|
251
|
90
|
50
|
45
|
80
|
90
|
7,8
|
160
|
8
|
12,500
|
1.250
|
25,28
|
90,0
|
|
120
|
262
|
277
|
100
|
55
|
50
|
90
|
100
|
8,0
|
180
|
8
|
15,000
|
1.500
|
32,00
|
112,0
|
