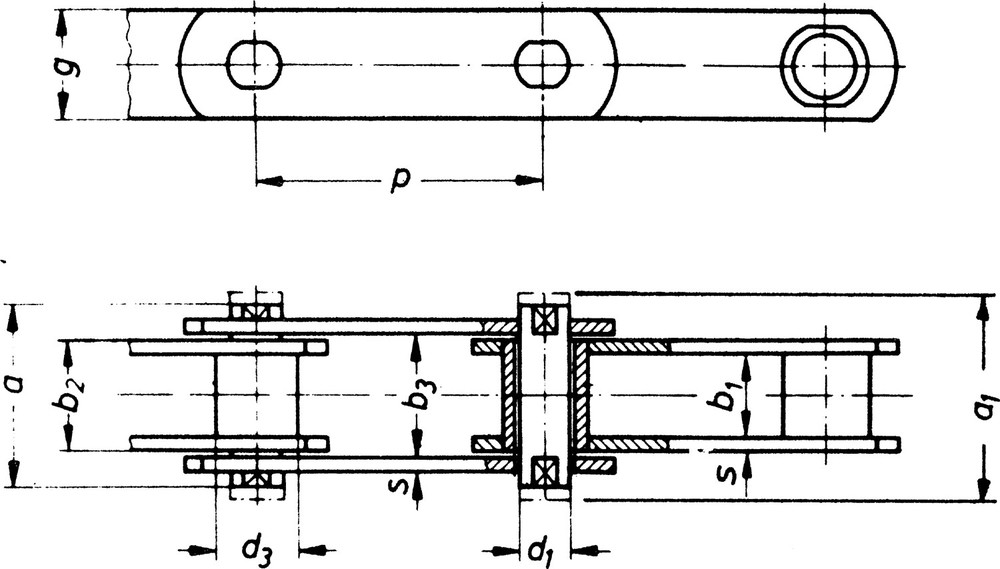

ohne Rollen

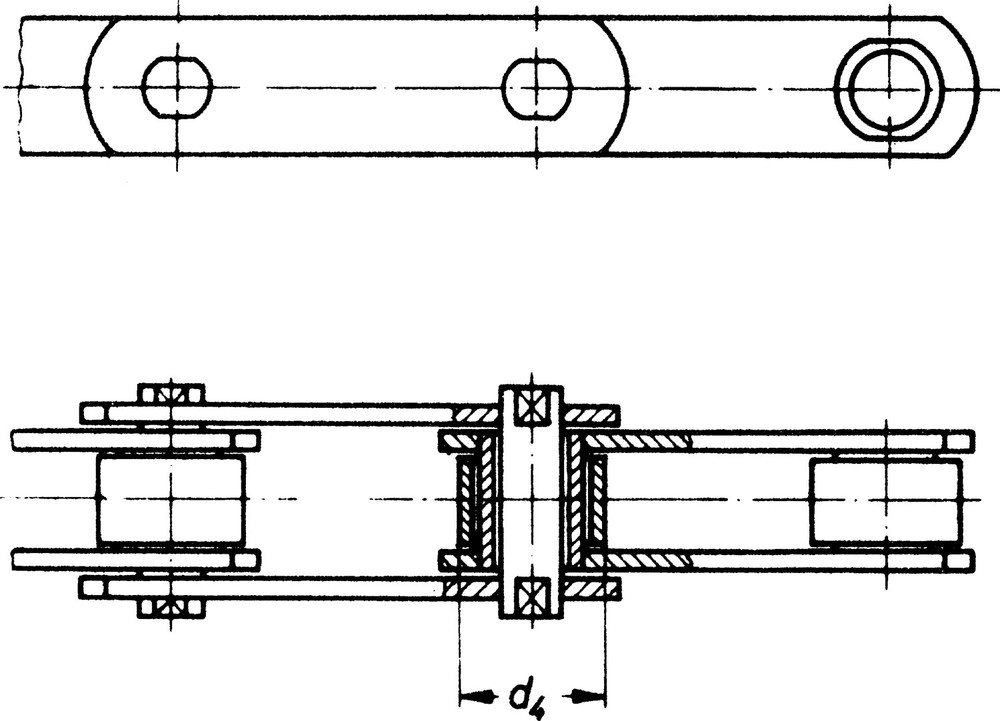

mit Laufrollen Form B und C DIN 8166

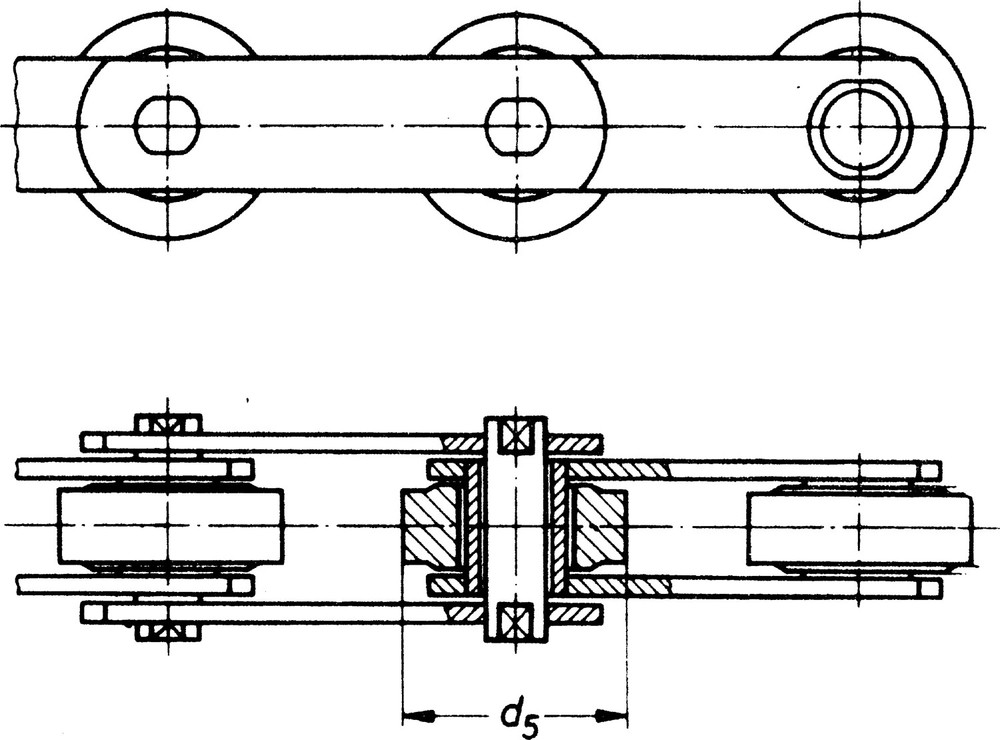

mit Schonrollen Form A DIN 8166
mit Bundlaufrollen Form D und E DIN 8166
|
Chain-N°
|
p
|
a max.
|
b1 min.
|
b2 max.
|
b3 min.
|
c
|
d1 max.
|
d3 max.
|
d4 max.
|
d5 max.
|
d6 max.
|
d7 max.
|
d8 max.
|
|
FV 40
|
40-100
|
37
|
18
|
24,5
|
25,0
|
1,0
|
10
|
15
|
20
|
32
|
40
|
48
|
15
|
|
FV 63
|
63-160
|
46
|
22
|
30,5
|
31,0
|
1,5
|
12
|
18
|
26
|
40
|
50
|
60
|
18
|
|
FV 90
|
63-250
|
53
|
25
|
35,5
|
36,0
|
2,0
|
14
|
20
|
30
|
48
|
63
|
73
|
20
|
|
FV 112
|
100-250
|
63
|
30
|
42,5
|
43,0
|
2,5
|
16
|
22
|
32
|
55
|
72
|
87
|
22
|
|
FV 140
|
100-315
|
68
|
35
|
47,5
|
48,0
|
3,0
|
18
|
26
|
36
|
60
|
80
|
95
|
26
|
|
FV 180
|
125-400
|
86
|
45
|
61,5
|
62,5
|
3,0
|
20
|
30
|
42
|
70
|
100
|
120
|
30
|
|
FV 250
|
125-400
|
98
|
55
|
72,0
|
73,0
|
3,5
|
26
|
36
|
50
|
80
|
125
|
145
|
36
|
|
FV 315
|
160-400
|
117
|
65
|
86,0
|
87,0
|
3,5
|
30
|
42
|
60
|
90
|
140
|
170
|
42
|
|
FV 400
|
160-400
|
131
|
70
|
96,0
|
97,0
|
3,5
|
32
|
44
|
60
|
100
|
150
|
185
|
44
|
|
FV 500
|
160-500
|
141
|
80
|
106,0
|
107,0
|
3,5
|
36
|
50
|
70
|
110
|
160
|
195
|
50
|
|
FV 630
|
200-500
|
153
|
90
|
116,0
|
117,0
|
4,5
|
42
|
56
|
80
|
120
|
170
|
210
|
56
|
|
Chain-N°
|
f
|
g
|
s
|
breaking load kN
|
bearing area cm²
|
permissible bearing pressure
N/cm2
|
|
FV 40
|
3,0
|
26
|
3
|
40
|
2,5
|
2.680
|
|
FV 63
|
3,5
|
30
|
4
|
63
|
3,7
|
2.840
|
|
FV 90
|
4,5
|
35
|
5
|
90
|
5,0
|
3.000
|
|
FV 112
|
5,0
|
40
|
6
|
112
|
6,8
|
2.750
|
|
FV 140
|
6,0
|
45
|
6
|
140
|
8,6
|
2.720
|
|
FV 180
|
10,0
|
50
|
8
|
180
|
12,3
|
2.440
|
|
FV 250
|
11,5
|
60
|
8
|
250
|
18,7
|
2.230
|
|
FV 315
|
14,5
|
70
|
10
|
315
|
25,8
|
2.040
|
|
FV 400
|
16,5
|
70
|
12
|
400
|
30,7
|
2.170
|
|
FV 500
|
17,5
|
80
|
12
|
500
|
38,2
|
2.180
|
|
FV 630
|
17,5
|
100
|
12
|
630
|
48,7
|
2.160
|
