Tyre-protection chains Type LOM 11.x - LOM 14.x

/onecol/cms/352/LOM_1_type1.jpg

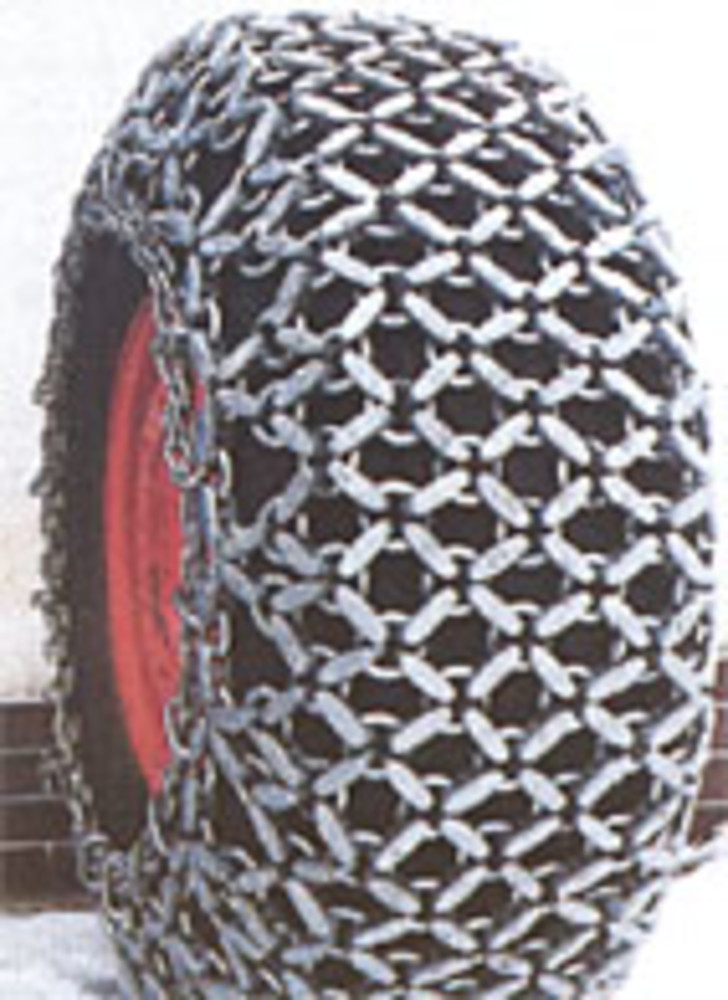

LOM 11.4.H - type

Technical data:

  • engine power: up to 100 kW
  • tyre size: 10-15 up to 17,5-25
  • link size 62 x 32 x 22 mm
  • distance between links: 58 mm
  • minimal distance between
  • the tyre and the machine: side: 50 mm
  • radial: 70 mm

/onecol/cms/351/LOM_1_type2.jpg

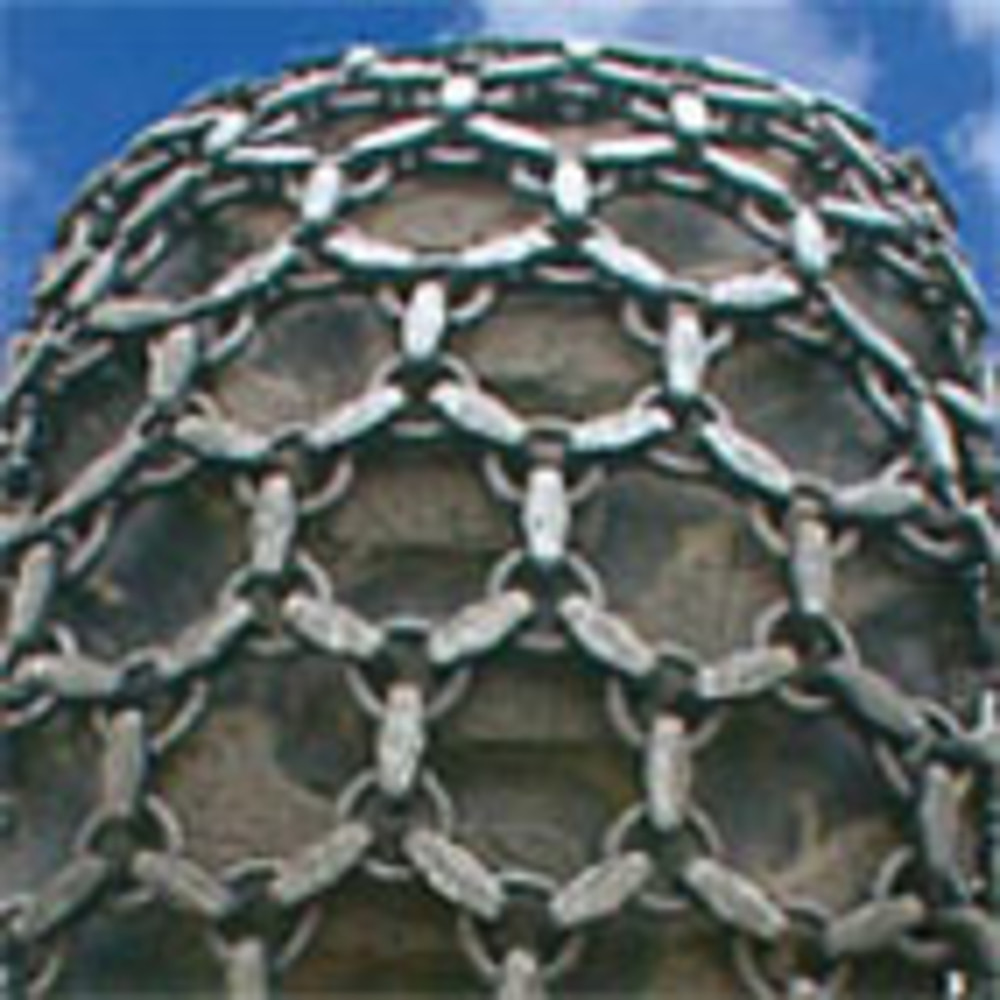

LOM 11.6.H - type

Technical data:

  • distance between links/rings: 116/98 mm

/onecol/cms/350/LOM_1_type3.jpg

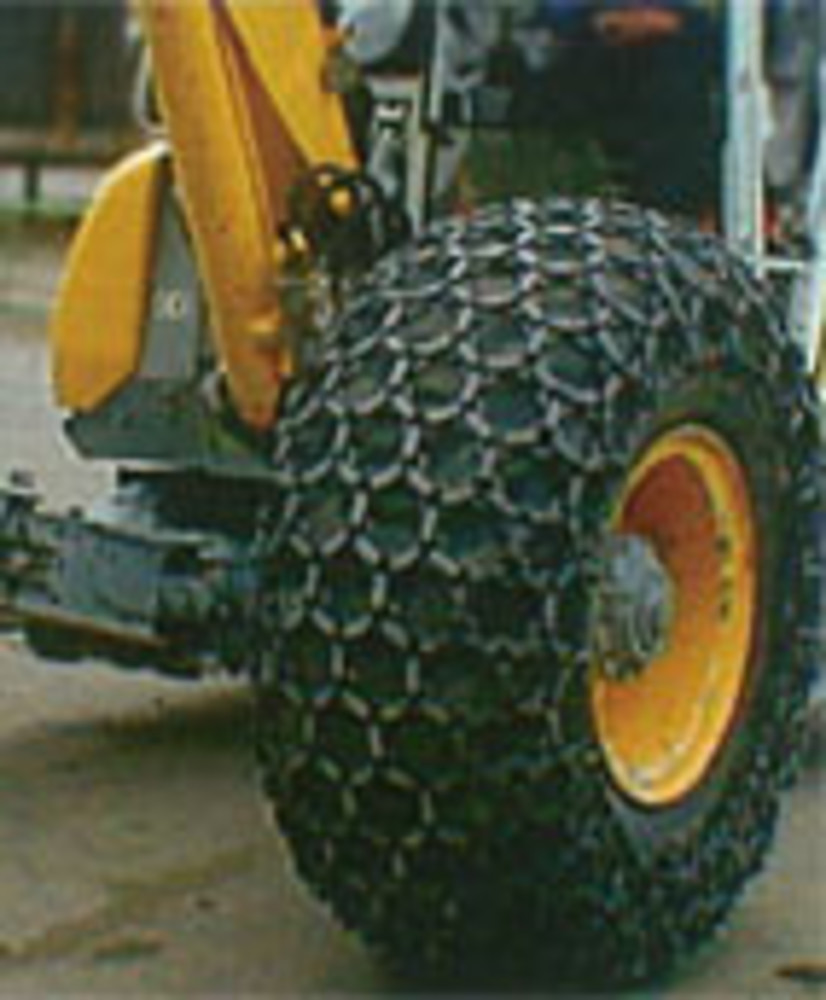

LOM 14.4.L3

Tyre-protection chains with the lightened “link” design (size 9 ÷ 14)

In these chains, the classic forged protective link iss substituted by a classic chain link. These designs are perfectly suited for less demanding conditions, e.g. for trailing axles of mining machinery. Available sizes: 9; 11; 14 mm

/onecol/cms/349/LOM_1_type4.jpg

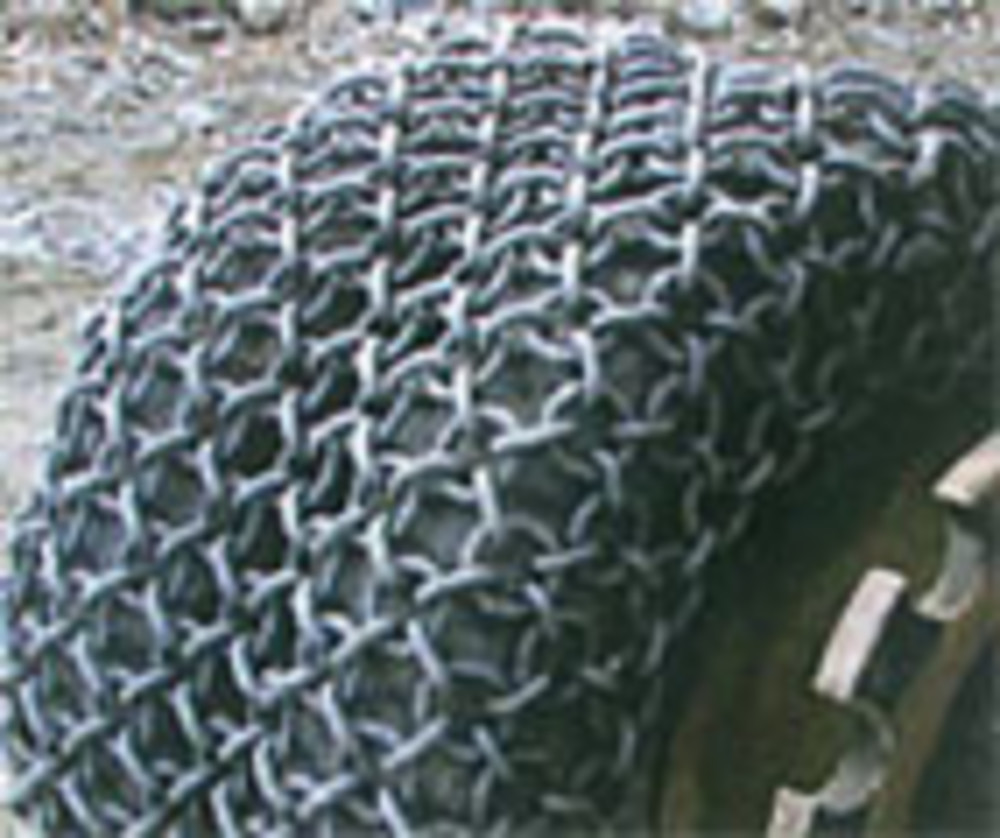

LOM 14.4

/onecol/cms/348/LOM_1_type5.jpg

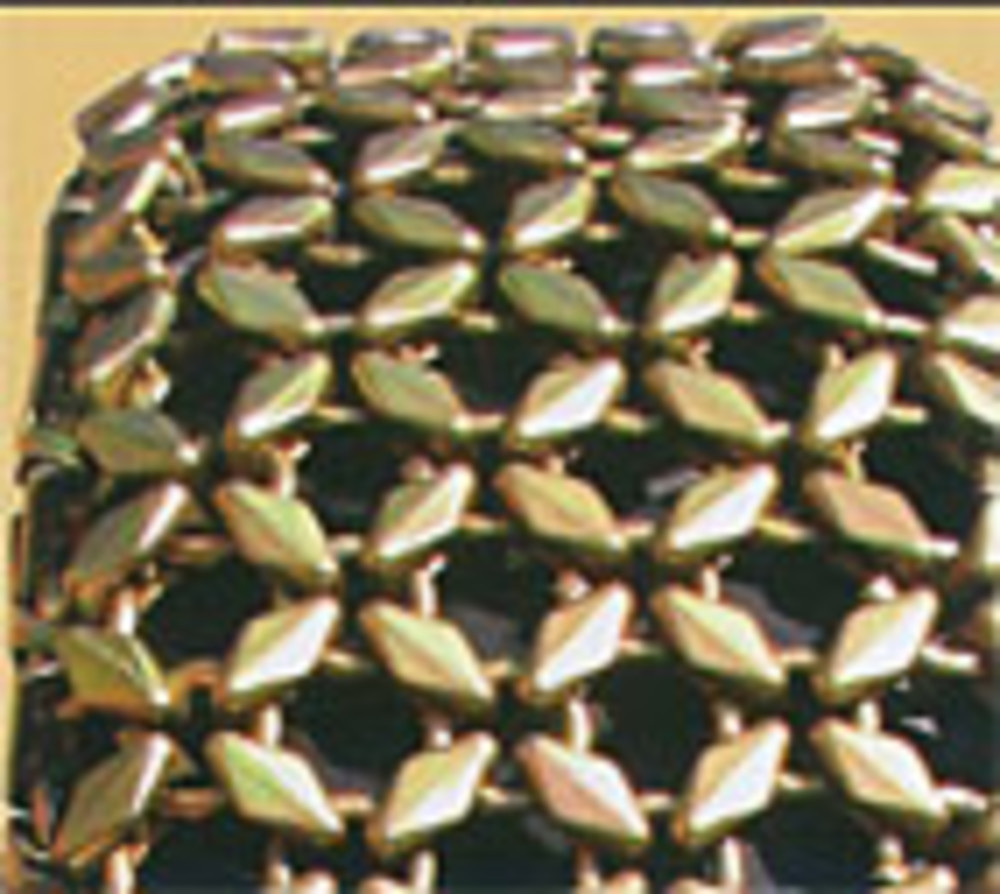

LOM 14.4.H; U; Z; E - type

Technical data:

  • engine power: 80 to 200 kW
  • tyre size: 14-24 up to 26,5-25
  • link size 78 x 47 x 22 ÷ 39 mm
  • distance between rings: 63 mm
  • distance between links H: 61 mm
  • distance between links U: 72 mm
  • distance between links E and Z: 78 mm
  • minimal distance between the tyre and the machine: side: 60 mm, radial: 80 mm

/onecol/cms/347/LOM_1_type6.jpg

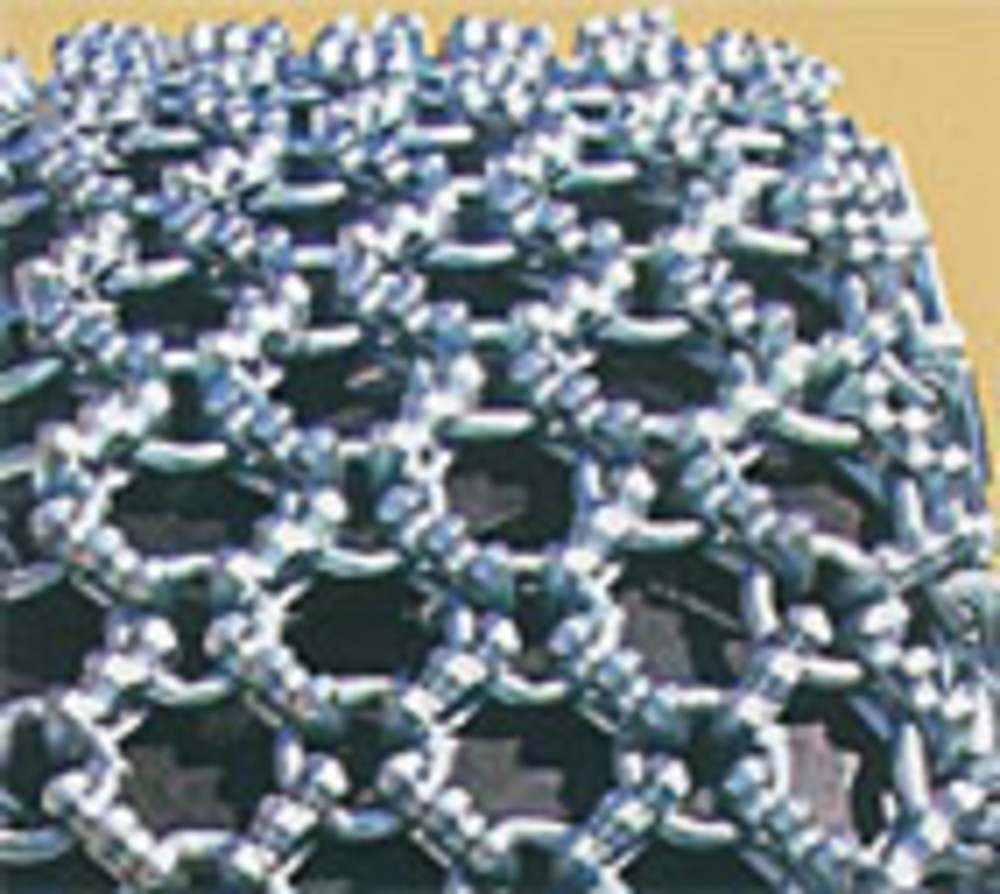

LOM 14.4.Z - type

/onecol/cms/346/LOM_1_type7.jpg

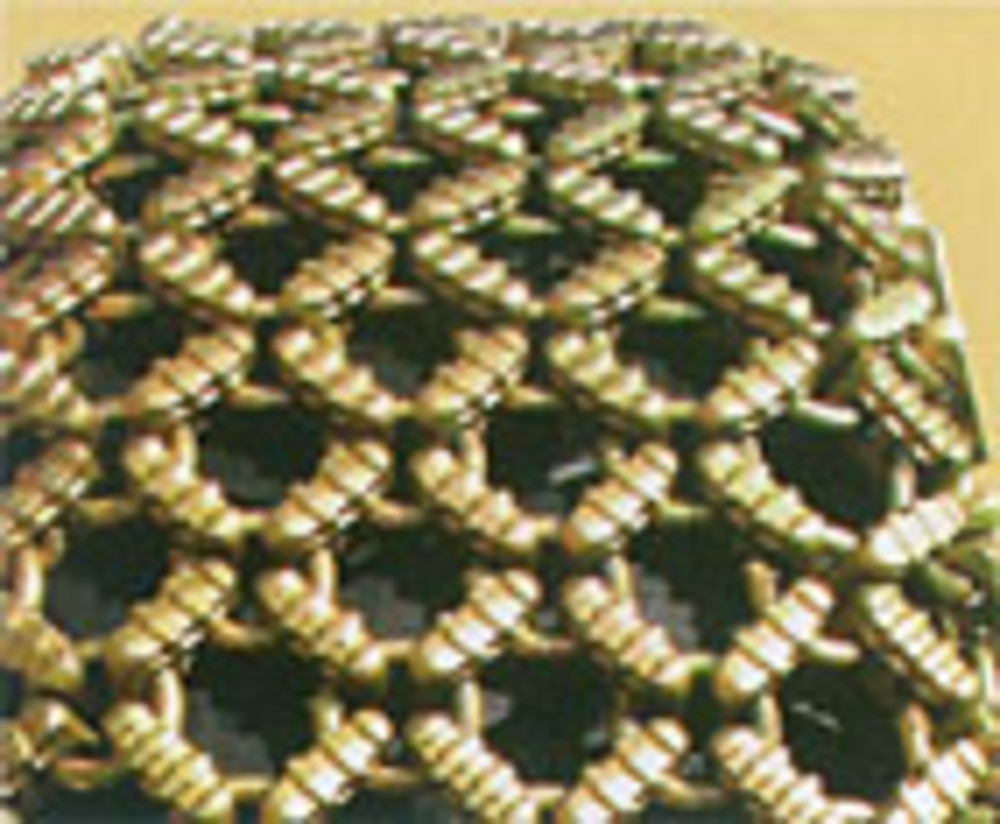

LOM 14.4.U - type

/onecol/cms/345/LOM_1_type8.jpg

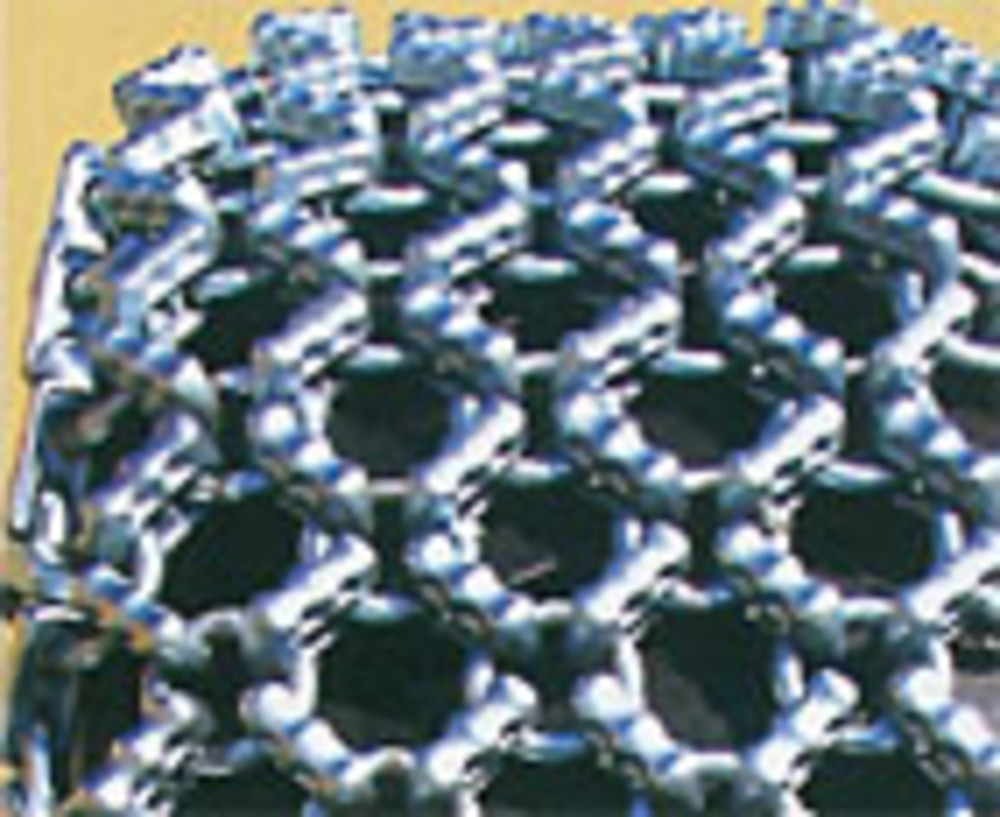

LOM 14.4.E - type

/onecol/cms/344/LOM_1_type9.jpg

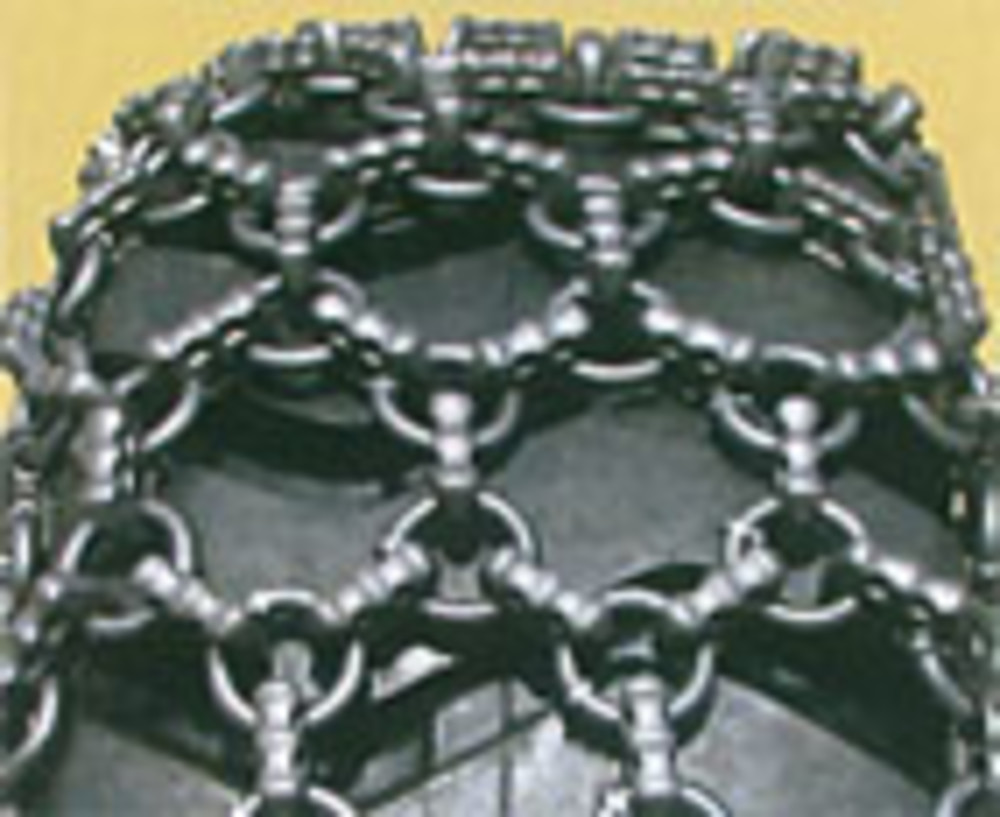

LOM 14.6.E - type

Technical data:

  • distance between links/rings: 151/122 mm

/onecol/cms/343/LOM_1_type10.jpg

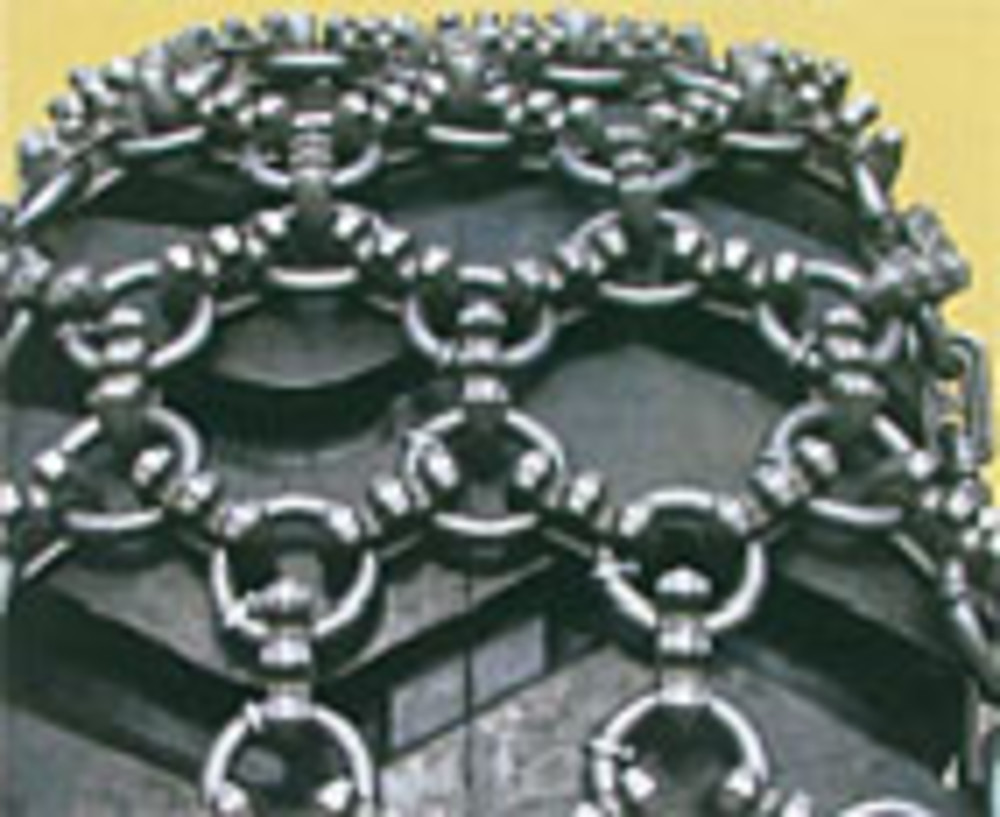

LOM 14.6.Z - type

Technical data:

  • distance between links/rings: 151/122 mm
