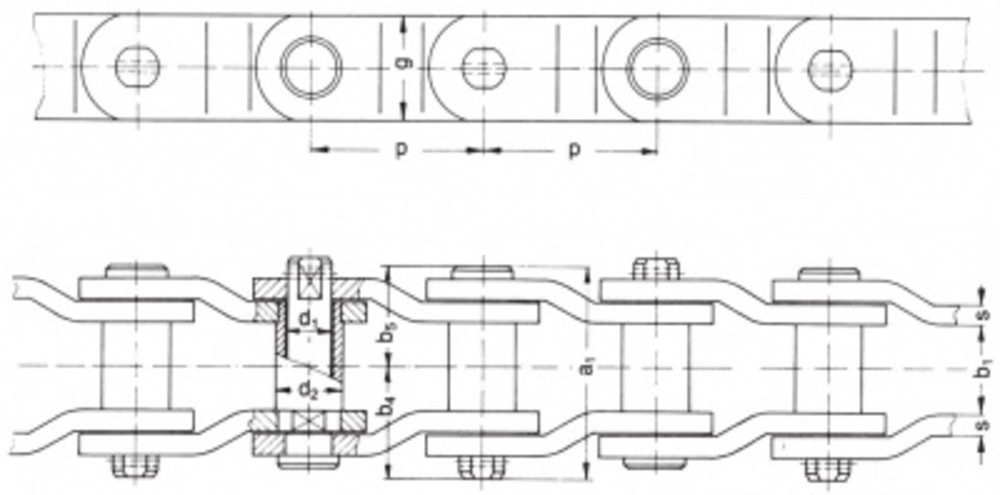

Chain-N°
|
p
|
b1 min.
|
b4 max.
|
b5 max.
|
d1 max.
|
d2 max.
|
a1 max.
|
g max.
|
s
|
breaking load kN min.
|
chain load pull kN min.
|
bearing area cm²
|
~ weight kg/m
|
|
ST 40
|
38,7
|
18
|
21,0
|
18,5
|
7
|
14
|
39,5
|
22
|
3
|
25
|
3,36
|
1,68
|
2,6
|
|
ST 41
|
41,5
|
20
|
25,5
|
22,5
|
8
|
17
|
48,0
|
23
|
4
|
38
|
4,45
|
2,24
|
3,2
|
|
ST 42
|
42,0
|
25
|
30,0
|
25,0
|
9
|
19
|
55,0
|
30
|
4
|
48
|
5,85
|
2,97
|
4,7
|
|
ST 59
|
59,5
|
28
|
33,5
|
28,5
|
9
|
21
|
62,0
|
30
|
5
|
55
|
6,70
|
3,42
|
4,4
|
|
ST 63
|
63,0
|
30
|
34,5
|
29,5
|
10
|
21
|
64,0
|
35
|
5
|
65
|
7,95
|
4,00
|
4,9
|
|
ST 63 B
|
63,0
|
40
|
39,5
|
34,5
|
12
|
21
|
74,0
|
40
|
5
|
85
|
11,40
|
6,00
|
4,9
|
|
ST 63 V
|
63,0
|
30
|
34,5
|
29,5
|
10
|
21
|
64,0
|
30
|
5
|
104
|
10,00
|
4,00
|
4,4
|
|
ST 65 V
|
65,5
|
33
|
39,0
|
33,0
|
12
|
25
|
72,0
|
30
|
6
|
105
|
13,50
|
5,40
|
4,6
|
|
ST 65
|
65,5
|
33
|
39,0
|
33,0
|
12
|
25
|
72,0
|
40
|
6
|
90
|
10,60
|
5,40
|
6,5
|
|
ST 65 B
|
65,5
|
50
|
47,5
|
41,5
|
17
|
28
|
89,0
|
45
|
6
|
120
|
20,50
|
10,50
|
7,4
|
|
ST 87
|
87,0
|
48
|
46,5
|
40,5
|
17
|
35
|
87,0
|
45
|
6
|
120
|
20,40
|
10,20
|
11,7
|
|
ST 100
|
100,0
|
31
|
37,5
|
30,0
|
12
|
23
|
67,5
|
35
|
5
|
78
|
9,60
|
4,92
|
4,3
|
|
ST 100 A
|
100,0
|
29
|
39,0
|
32,0
|
13
|
27
|
71,0
|
35
|
6
|
90
|
10,50
|
5,33
|
5,4
|
|
ST 100 B
|
100,0
|
41
|
45,0
|
38,0
|
15
|
30
|
85,0
|
40
|
6
|
120
|
15,70
|
7,95
|
8,5
|
|
ST 135
|
134,5
|
33
|
38,0
|
31,0
|
12
|
23
|
69,0
|
35
|
5
|
78
|
10,30
|
5,16
|
4,2
|
|
ST 135 A
|
134,5
|
34
|
38,5
|
31,5
|
14
|
23
|
70,0
|
35
|
5
|
80
|
12,20
|
6,16
|
4,4
|
|
ST 150
|
150,0
|
48
|
53,0
|
46,5
|
17
|
32
|
100,0
|
50
|
8
|
176
|
20,50
|
10,50
|
10,5
|
