Freital-Chains

/onecol/cms/527/freitalkette-intro.jpg

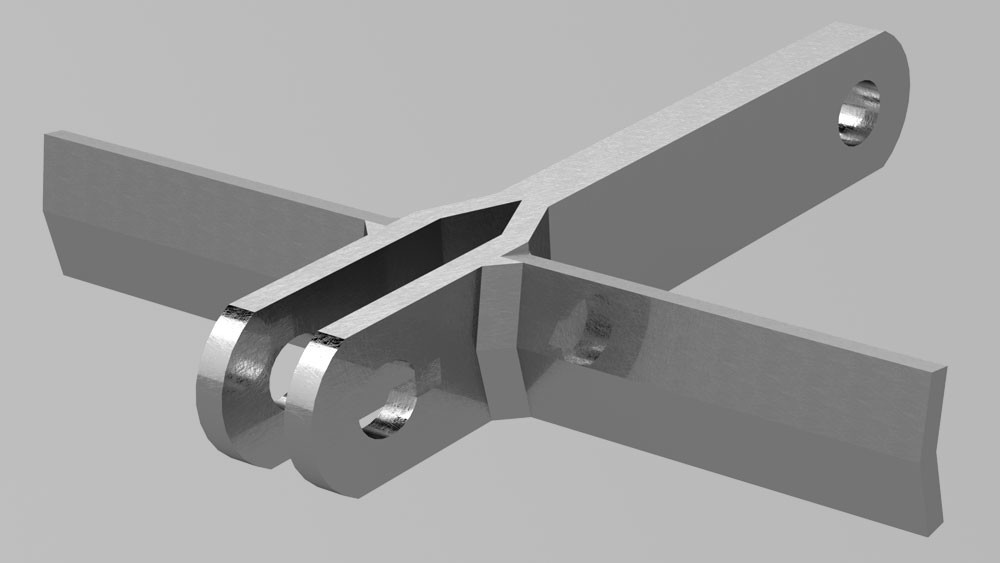

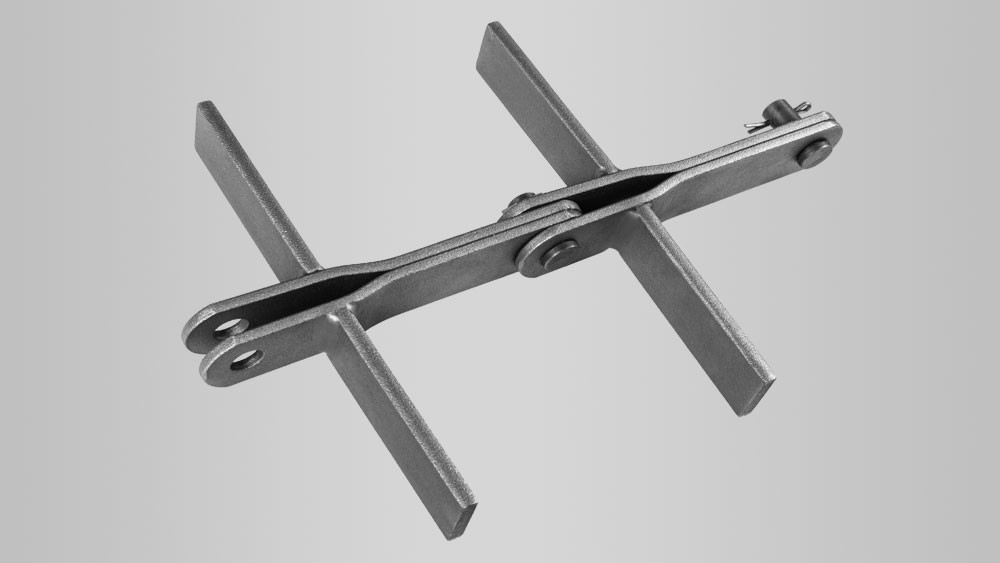

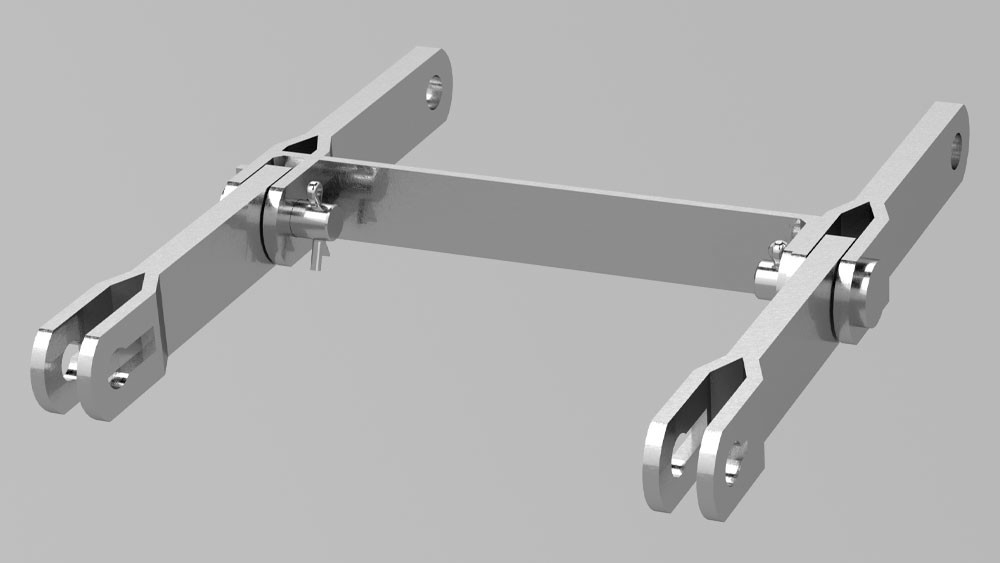

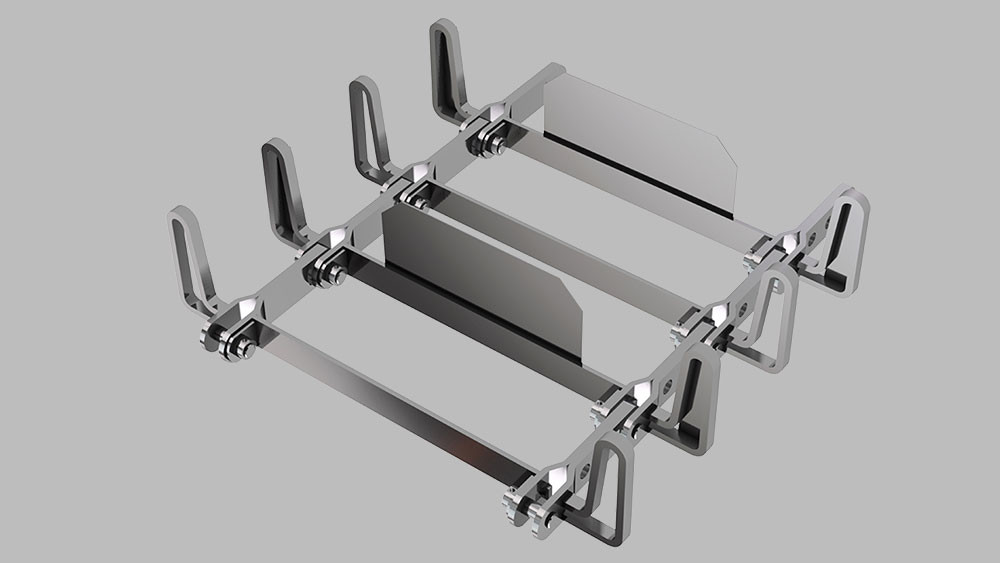

The pictured tabs are an excerpt from our current range of Freital-Chains. We are constantly expanding our manufacturing program to include Freital-Chains.

At present the following divisions are available in different versions:

160, 200 and 250 mm.

/onecol/cms/528/freitalkette.jpg
/onecol/cms/538/freitalkette-einstrang-3d.jpg

/onecol/cms/539/freitalkette-doppelstrang-3d.jpg

/onecol/cms/561/freital-7.jpg

Breaking loads

Drop Forged Link/Pitch
Material St 52-3
Material Hardox 400
160 x 36 x 12 mm
89 KN
201 KN
200 x 50 x 16 mm
169 KN
384 KN
200 x 70 x 24 mm
381 KN
864 KN
250 x 70 x 24 mm
381 KN
864 KN
