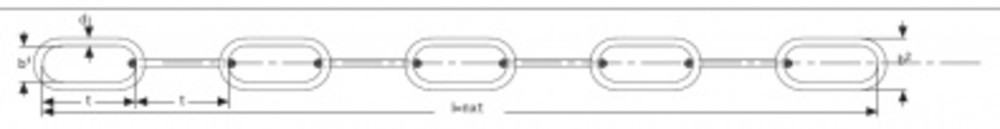

DIN 5683

/onecol/cms/259/395x51_DIN_5683.jpg

d t b2 kg/m min. Proof load in kN GK1 Oroof load in kN GK2 Breaking load in kN GK 1 Breaking load in kN GK 2
16
144
88
4,30
15,0
32,2
75,0
161,0
18
162
99
5,50
18,3
40,7
91,5
203,5
20
180
110
6,80
22,8
50,3
114,0
251,5
23
207
127
8,90
30,0
66,5
150,0
332,5
26
234
143
11,40
38,4
85,0
192,0
425,0
30
270
165
15,20
51,0
113,0
255,0
565,0
33
297
181
18,30
61,8
136,8
309,0
684,0
36
324
198
21,90
75,0
163,0
375,0
815,0
39
351
214
25,70
90,0
191,0
450,0
955,0
