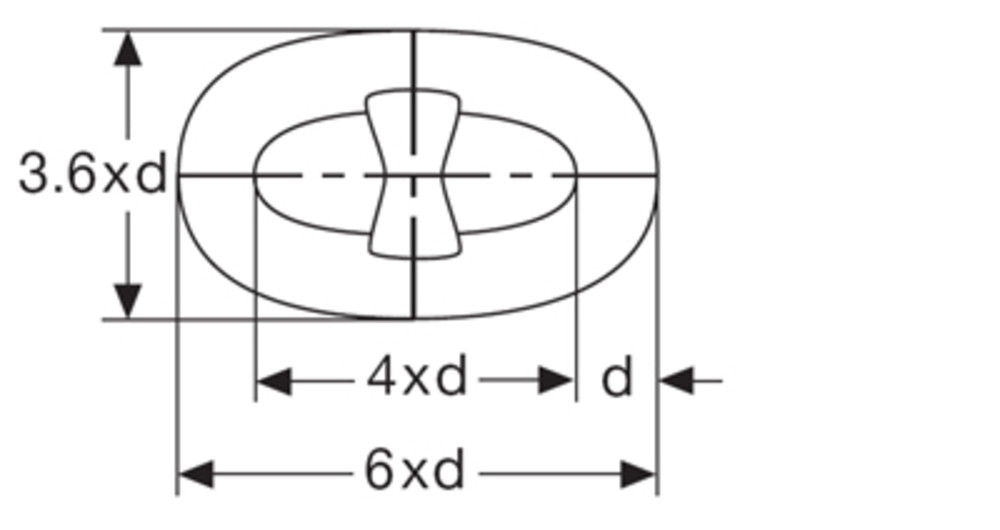

Stud link anchor chains

/onecol/cms/258/ankerstegketten2.jpg

d U1 Proof load kN U1 Breaking load kN U2 Proof load kN U2 Breaking load kN U3 Proof load kN U3 Breaking load kN U4 Proof load kN U4 Breaking load kN Weight kg/m
12,5
46,1
65,7
65,7
92,2
92,2
132,0
–
–
3,5
14,0
57,9
82,4
82,4
116,0
116,0
165,0
–
–
4,4
16,0
75,5
107,0
107,0
150,0
150,0
216,0
–
–
5,8
17,5
89,2
127,0
127,0
179,0
179,0
256,0
–
–
6,9
19,0
105,0
150,0
150,0
211,0
211,0
301,0
–
–
8,1
20,5
123,0
175,0
175,0
244,0
244,0
349,0
–
–
9,5
22,0
140,0
200,0
200,0
280,0
280,0
401,0
–
–
10,9
24,0
167,0
237,0
237,0
332,0
332,0
476,0
–
–
13,0
26,0
194,0
278,0
278,0
389,0
389,0
556,0
–
–
15,3
28,0
225,0
321,0
321,0
449,0
449,0
642,0
–
–
17,7
30,0
257,0
368,0
368,0
514,0
514,0
735,0
–
–
20,3
32,0
291,0
417,0
417,0
583,0
583,0
833,0
–
–
23,1
34,0
328,0
468,0
468,0
655,0
655,0
937,0
–
–
26,1
36,0
366,0
523,0
523,0
732,0
732,0
1.050,0
–
–
29,3
38,0
406,0
581,0
581,0
812,0
812,0
1.160,0
–
–
32,6
40,0
448,0
640,0
640,0
896,0
896,0
1.280,0
–
–
36,2
42,0
492,0
703,0
703,0
981,0
981,0
1.400,0
–
–
39,9
44,0
538,0
769,0
769,0
1.080,0
1.080,0
1.540,0
–
–
43,8
46,0
585,0
837,0
837,0
1.170,0
1.170,0
1.680,0
–
–
47,8
48,0
635,0
908,0
908,0
1.270,0
1.270,0
1.810,0
–
–
52,1
50,0
686,0
981,0
981,0
1.370,0
1.370,0
1.960,0
2.160,0
2.740,0
56,5
52,0
739,0
1.060,0
1.060,0
1,480,0
1.480,0
2.110,0
2.330,0
2.960,0
61,1
54,0
794,0
1.140,0
1.140,0
1.590,0
1.590,0
2.270,0
2.500,0
3.170,0
66,1
56,0
851,0
1.220,0
1.220,0
1.710,0
1.710,0
2.430,0
2.680,0
3.400,0
71,2
58,0
909,0
1.290,0
1.290,0
1.810,0
1.810,0
2.600,0
2.860,0
3.630,0
76,4
60,0
969,0
1.380,0
1.380,0
1.940,0
1.940,0
2.770,0
3.050,0
3.870,0
81,7
62,0
1.030,0
1.470,0
1.470,0
2.060,0
2.060,0
2.940,0
3.240,0
4.120,0
87,3
64,0
1.100,0
1.560,0
1.560,0
2.190,0
2.190,0
3.130,0
3.440,0
4.370,0
93,4
66,0
1.160,0
1.660,0
1.660,0
2.310,0
2.310,0
3.300,0
3.640,0
4.630,0
99,3
68,0
1.230,0
1.750,0
1.750,0
2.450,0
2.450,0
3.500,0
3.850,0
4.890,0
105,4
70,0
1.290,0
1.840,0
1.840,0
2.580,0
2.580,0
3.690,0
4.060,0
5.160,0
111,7
73,0
1.390,0
1.999,0
1.999,0
2.790,0
2.790,0
3.990,0
4.390,0
5.580,0
121,5
76,0
1.500,0
2.150,0
2.150,0
3.010,0
3.010,0
4.300,0
4.730,0
6.010,0
131,7
78,0
1.580,0
2.260,0
2.260,0
3.160,0
3.160,0
4.500,0
4.960,0
6.300,0
138,7
81,0
1.690,0
2.410,0
2.410,0
3.380,0
3.380,0
4.820,0
5.320,0
6.750,0
149,6
84,0
1.800,0
2.580,0
2.580,0
3.610,0
3.610,0
5.160,0
5.680,0
7.220,0
161,6
87,0
1.920,0
2.750,0
2.750,0
3.850,0
3.850,0
5.500,0
6.060,0
7.690,0
173,3
90,0
2.050.0
2.920,0
2.920,0
4.090,0
4.090,0
5.840,0
6.440,0
8.180,0
185,5
92,0
2.130,0
3.040,0
3.040,0
4.260,0
4.260,0
6.080,0
6.700,0
8.510,0
194,2
95,0
2.260,0
3.230,0
3.230,0
4.410,0
4.510,0
6.440,0
7.100,0
9.010,0
207,1
97,0
2.340,0
3.340,0
3.340,0
4.680,0
4.680,0
6.690,0
7.370,0
9.360,0
215,9
100,0
2.470,0
3.530,0
3.530,0
4.940,0
4.940,0
7.060,0
7.780,0
9.880,0
229,5
102,0
2.560,0
3.660,0
3.660,0
5.120,0
5.120,0
7.320,0
8.050,0
10.230,0
238,8
105,0
2.700,0
3.850,0
3.850,0
5.390,0
5.390,0
7.700,0
8.480,0
10.770,0
253,6
107,0
2.790,0
3.980,0
3.980,0
5.570,0
5.570,0
7.960,0
8.760,0
11.130,0
263,3
111,0
2.970,0
4.250,0
4.250,0
5.940,0
5.940,0
8.480,0
9.350,0
11.870,0
283,4
114,0
3.110,0
4.440,0
4.440,0
6.230,0
6.230,0
8.890,0
9.790,0
12.440,0
298,9
117,0
3.260,0
4.650,0
4.650,0
6.510,0
6.510,0
9.300,0
10.240,0
13.010,0
315,5
120,0
3.400,0
4.850,0
4.850,0
6.810,0
6.810,0
9.720,0
10.700,0
13.590,0
331,9
122,0
3.500,0
5.000,0
5.000,0
7.000,0
7.000,0
9.990,0
11.010,0
13.980,0
343,1
