Assembly, assembly accessories and tools

/onecol/cms/368/assembly.jpg

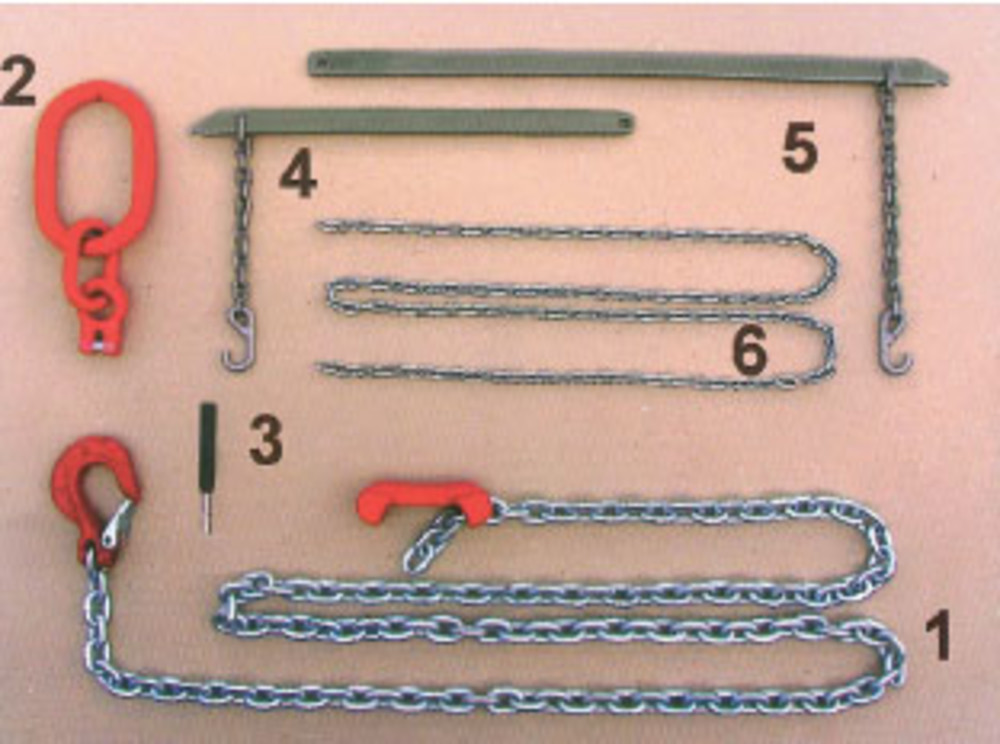

The producer will carry out installation upon request; this may be stated in the order of the chains. During the installation, the customer`s employees are trained and instructed in the operation, maintenance and repair of the chains. To perform these operations, the producer recommends ordering the assembly accessories and tools as listed in the table below.

pos.
item
size
JK number
1.
Mounting tensioning chain with hook
9
317 263 085 090
10
317 263 085 100
2.
Mounting tensioning chain with master link
9
317 263 085 091
10
317 263 085 101
3.
Driver
ø 6 x 30 mm
317 549 920 067
ø 8 x 37 mm
317 549 920 087
ø 10 x 40
317 549 920 107
mm
317 549 920 126
4.
Short-lever
ø 12 x 45
317 549 920 003
5.
Long-lever
mm
317 549 920 009
550 mm
317 549 920 002
6.
Chain
1.100 mm
317 549 920 001
